SQON Filter Notation

Serializable Query Object Notation (SQON, pronounced like "Scone") is a custom filter syntax used within Arranger to [consisly state the problem and solution sqons provide]...

The diagram below helps illustrate the where SQONs are used while the example below will show you have they [solve the defined problem]

Understanding SQON Structure

A SQON object consists of two types of nested objects that work together to create filter expressions:

• Value Objects - Define the field and values being queried (the building blocks)
• Operation Objects - Apply logic to filter and combine value objects

Value Objects

Value objects are the building blocks that specify the field being queried and the values used for the query.

{
  "fieldName": "sequencing_instrument",
  "value": ["Illumina NextSeq 550"]
}

What this means:

This value object specifies the field sequencing_instrument and the value "Illumina NextSeq 550" that will be used for filtering.

Value Object Properties

Property	Type	Description
fieldName	string	Name of the field this operation applies to
value	Array<any> / any	List of values for "in" operations, or scalar value for range queries

Field Operations

Field operations wrap value objects and specify how to match field values.

{
  "op": "in",
  "content": {
    "fieldName": "host_age",
    "value": ["20 - 29"]
  }
}

What this means:

This filters for records where the host age is "20 - 29".

Field Operation Properties

Property	Type	Description
op	string	Operation to apply: "in", ">=", "<="
content	ValueObject	Value object specifying the field and values to match

Available Operations

Operation	Description	Value Type
"in"	Field value must match one of the listed values	Array
">="	Field value must be greater than or equal to	Scalar (number)
"<="	Field value must be less than or equal to	Scalar (number)

Combination Operations

Combination operations group one or more field operations together using boolean logic (AND, OR, NOT).

{
  "op": "and",
  "content": [
    { ... },
    { ... }
  ]
}

What this means:

This combines multiple filter operations where all conditions must be true (AND logic). The placeholder { ... } objects would be replaced with actual field operations.

Combination Operation Properties

Property	Type	Description
op	string	Boolean operation to apply: "and", "or", "not"
content	Array<OperationObject>	List of operation objects that the boolean operation applies to

Important:

The top level of a SQON must always be a combination operation, even if only a single filter is being applied.

Complete Example

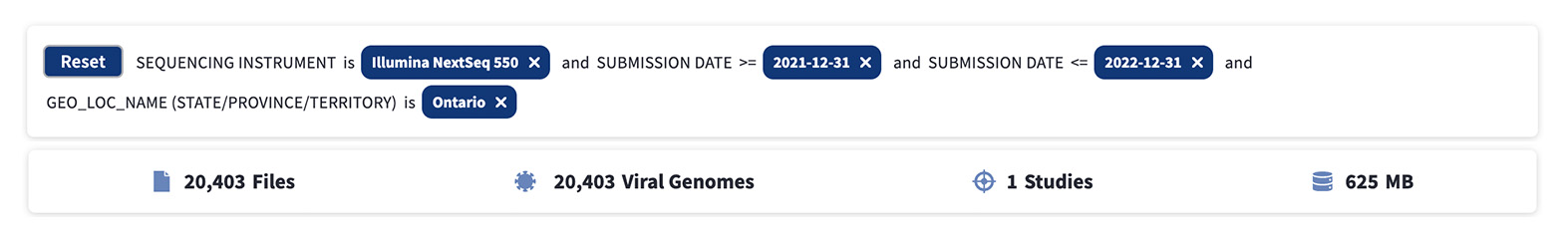

All filters applied in the faceted search panel are displayed in the SQON viewer:

The selection of filters shown above is recorded in SQON format as follows:

{
  "op": "and",
  "content": [
    {
      "op": "in",
      "content": {
        "fieldName": "experiment.sequencing_instrument",
        "value": ["Illumina NextSeq 550"]
      }
    },
    {
      "op": ">=",
      "content": {
        "fieldName": "first_published_at",
        "value": 1640926800000
      }
    },
    {
      "op": "<=",
      "content": {
        "fieldName": "first_published_at",
        "value": 1672549199999
      }
    },
    {
      "op": "in",
      "content": {
        "fieldName": "host_age",
        "value": ["20 - 29"]
      }
    },
    {
      "op": "in",
      "content": {
        "fieldName": "sample_collection.geo_loc_province",
        "value": ["Ontario"]
      }
    }
  ]
}

What this means:

This SQON filters for records where:

• Sequencing instrument is "Illumina NextSeq 550" AND
• First published date is between December 31, 2021 and December 31, 2022 AND
• Host age is in the 20-29 range AND
• Sample collection province is Ontario

All date values are represented as Unix timestamps.

Building Complex Queries

You can create more sophisticated filters by nesting combination operations:

{
  "op": "and",
  "content": [
    {
      "op": "or",
      "content": [
        {
          "op": "in",
          "content": {
            "fieldName": "sample_collection.geo_loc_province",
            "value": ["Ontario", "Quebec"]
          }
        },
        {
          "op": "in",
          "content": {
            "fieldName": "sample_collection.geo_loc_country",
            "value": ["United States"]
          }
        }
      ]
    },
    {
      "op": "in",
      "content": {
        "fieldName": "host_age",
        "value": ["20 - 29", "30 - 39"]
      }
    }
  ]
}

What this means:

This SQON filters for records where:

• (Province is Ontario OR Quebec OR Country is United States) AND
• Age is between 20-39 years old

This demonstrates how you can combine OR logic for location with AND logic for age restrictions.

The Life of a SQON Filter

A relatively simple SQON filter

Converted into to a more complex GraphQL query

Used to create an even more complex Elasticsearch query
